Carbon Black

Spectrum Details

Modality

NIR

Category

mineral

Material Type

Element

Sample ID

GDS68

Collection Locality

Synthetic

Spectral Purity

1a2_3_4_ # 1= 0.2-3, 2= 1.5-6, 3= 6-25, 4= 20-150 microns

Composition / XRD

Other # XRF, EPMA, ICP(Trace), WChem COMPOSITION KEYWORD Oxide ASCII Amount Weight Percent, % Oxide html COMPOSITION: C: 99.0 wt% C COMPOSITION: volatile: 0.5 wt% volatile COMPOSITION: unknown: 0.5 wt% unknown COMPOSITION: Total 100.0 wt%

Sample Description

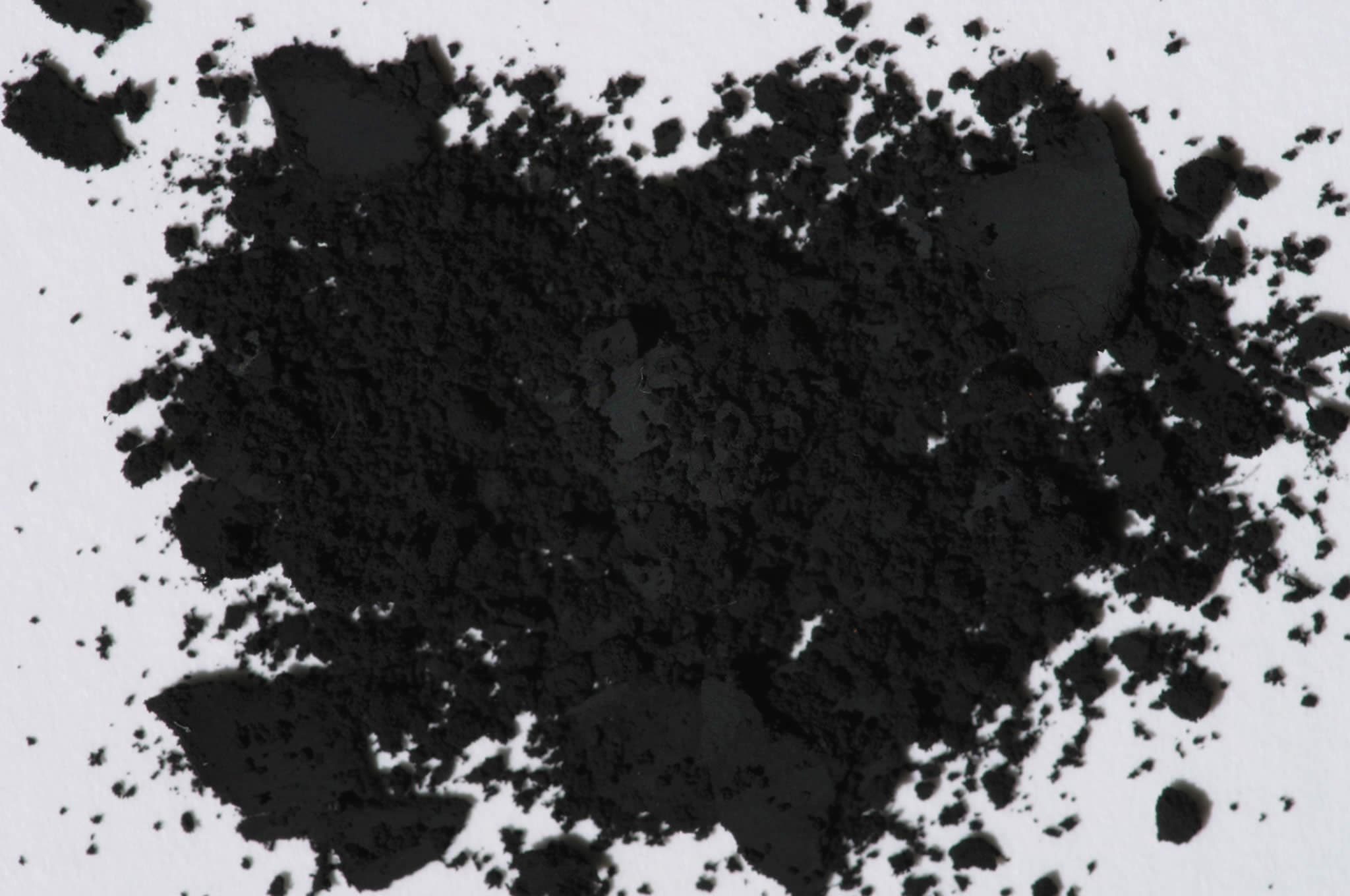

The sample and the visible-NIR spectrum was originally published in: Clark, R.N., 1983, Spectral Properties of Mixtures of Montmorillonite and Dark Carbon Grains: Implications for Remote Sensing Minerals Containing Chemically and Physically Adsorbed Water: J. Geophys. Res., v. 88, p. 10635-10644. The sample was manufactured by Sargent Welch (in about 1980) and consists of 99.0 wt% pure carbon, 0.5 wt% ash, and 0.5 wt% acetone extractable's. The sample was examined with scanning electron microscopy (SEM) and the grain size is quite uniform at 0.17 µm. Note that the Clark 1983 spectrum has too high a reflectance due to scattered light in the UH spectrometer. IMAGE_OF_SAMPLE:

X Units

cm⁻¹

Y Units

Absorbance

Data Points

2,126
