OiledMarshPlant DWO-2-DEL-04

Spectrum Details

Modality

NIR

Category

man-made

Material Type

vegetation coated with weathered oil

Sample ID

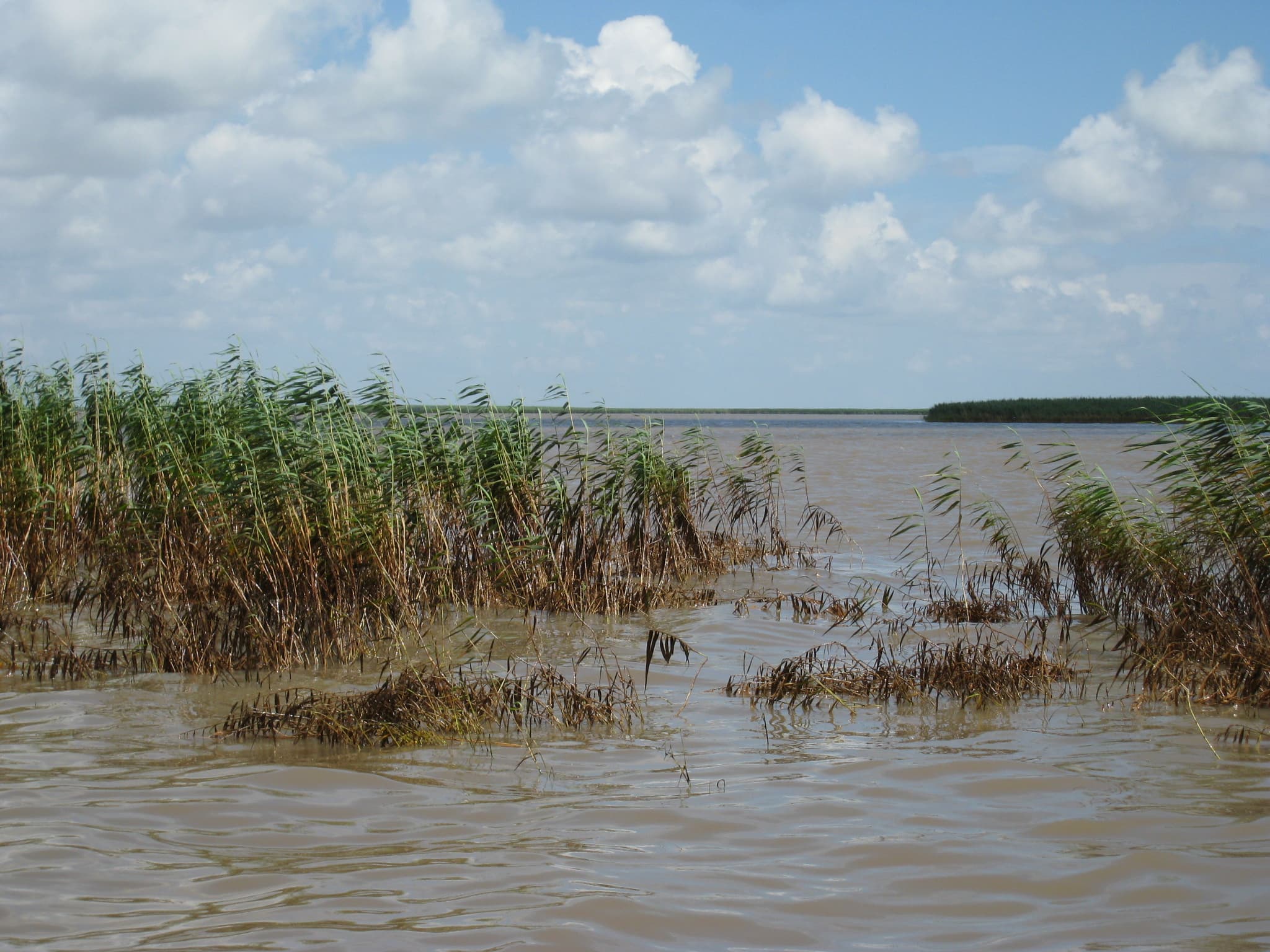

oil-coated plants from site DWO-2-DEL-04

Collection Locality

Bird's Foot delta of the Mississippi River, Louisiana

Spectral Purity

1a2_3_4_ # 1= 0.2-3, 2= 1.5-6, 3= 6-25, 4= 20-150 microns

Sample Description

Weathered oil from the Deepwater Horizon spill coating marsh plants. The oil-coated plants were collected on July 8, 2010, in an amber glass jar and stored on ice until spectral measurements were made in the laboratory on July 11, 2010. The spectrum is an average of 10 measurements made of oil-coated leaves of Phragmites australis. The reflectance spectrum has absorption features centered near 1.72 and 2.30 microns arising from C-H bonds in weathered oil. The site DWO-2-DEL-04 is described in: Kokaly, R.F., Heckman, David, Holloway, JoAnn, Piazza, Sarai, Couvillion, Brady, Steyer, G.D., Mills, Christopher, and Hoefen, T.M., 2011, Shoreline surveys of oil-impacted marsh in southern Louisiana, July to August 2010: U.S. Geological Survey Open-File Report 2011�1022, 124 p. Available at http://pubs.usgs.gov/of/2011/1022/ This spectrum, labeled as "Oiled-Plants3", was published and described in: Kokaly, R.F., Couvillion, B.R., Holloway, J.M., Roberts, D.A., Ustin, S.L., Peterson, S.H., Khanna, S., and Piazza, S.C., 2013, Spectroscopic remote sensing of the distribution and persistence of oil from the Deepwater Horizon spill in Barataria Bay marshes, Remote Sensing of Environment, Volume 129, Pages 210-230. http://dx.doi.org/10.1016/j.rse.2012.10.028 IMAGE_OF_SAMPLE:

X Units

cm⁻¹

Y Units

Absorbance

Data Points

2,126
