Rhodonite NMNHC6148 gt250um

Spectrum Details

Modality

FTIR

Category

mineral

Material Type

Inosilicate

Sample ID

NMNHC6148 >250um

Collection Locality

Franklin, New Jersey

Spectral Purity

1b2b3b4u # NMNHC6148 >250um # 1= 0.2-3, 2= 1.5-6, 3= 6-25, 4= 20-150 microns

Composition / XRD

XRF # XRF, EPMA, ICP(Trace), WChem

Sample Description

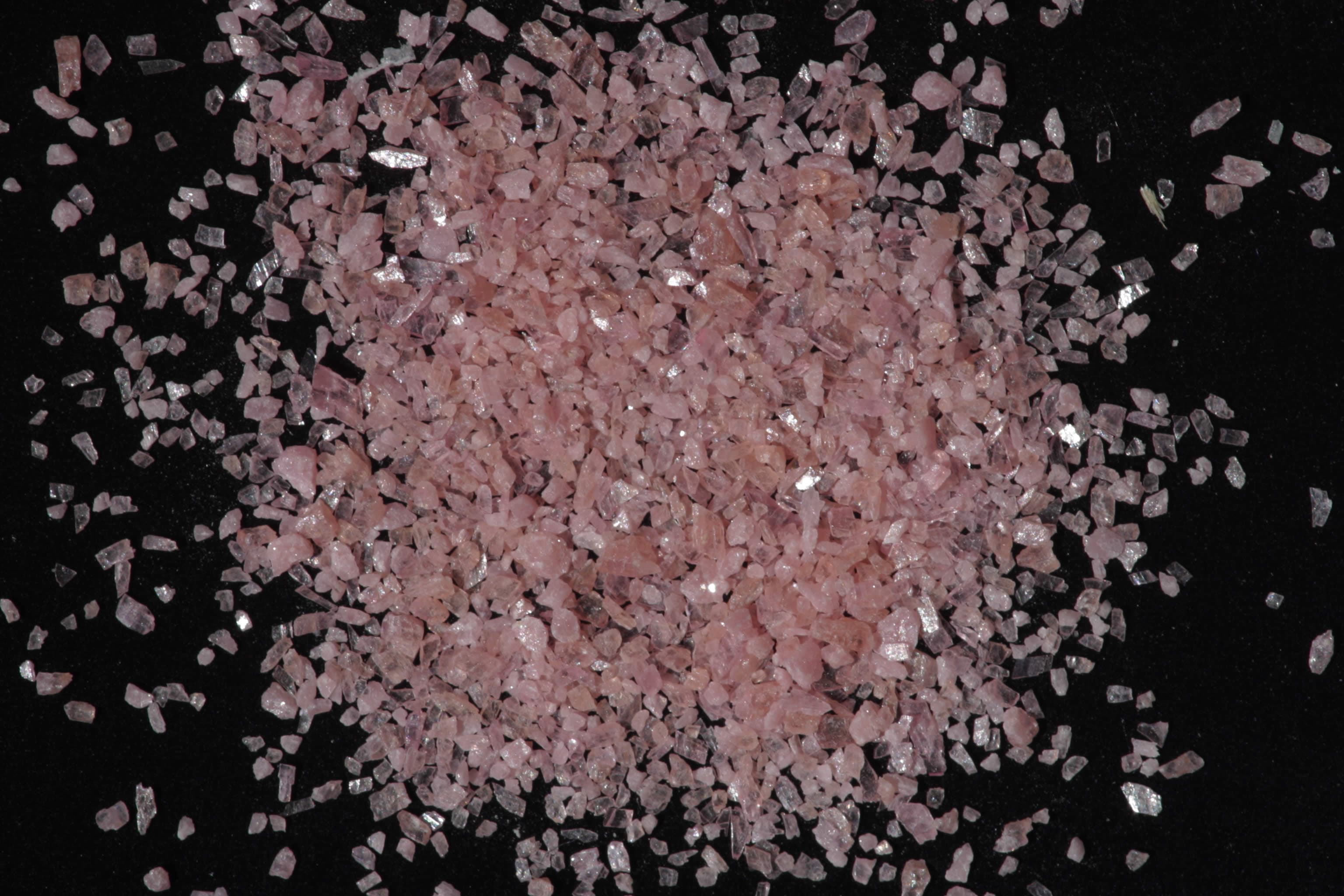

"Results of petrographic examination: Hand sample is composed of two fragments, each about 2cm x 2cm x 1cm. About one third of each is host rock on which the rhodonite crystals grow. This was removed by sawing to free pure rhodonite. Under petrographic microscope, many other grains show a small degree of alteration (not identified)." Salisbury, J. W., Walter, L. W., and Vergo, N., 1987, Mid-Infrared (2.1-25µm) Spectra of Minerals: First Edition, U.S. Geological Survey Open File Report 87-263. IMAGE_OF_SAMPLE:

XRD Analysis

Pure rhodonite. Salisbury, J. W., Walter, L. W., and Vergo, N., 1987, Mid-Infrared (2.1-25µm) Spectra of Minerals: First Edition, U.S. Geological Survey Open File Report 87-263. Pure (Norma Vergo).

X Units

cm⁻¹

Y Units

Absorbance

Data Points

1,801
