Sulfur

Spectrum Details

Modality

NIR

Category

mineral

Material Type

Element

Sample ID

GDS94

Collection Locality

Reagent grade

Spectral Purity

1a2a3a4_ # GDS94 # 1= 0.2-3, 2= 1.5-6, 3= 6-25, 4= 20-150 microns

Composition / XRD

# XRF, EPMA, ICP(Trace), WChem

Sample Description

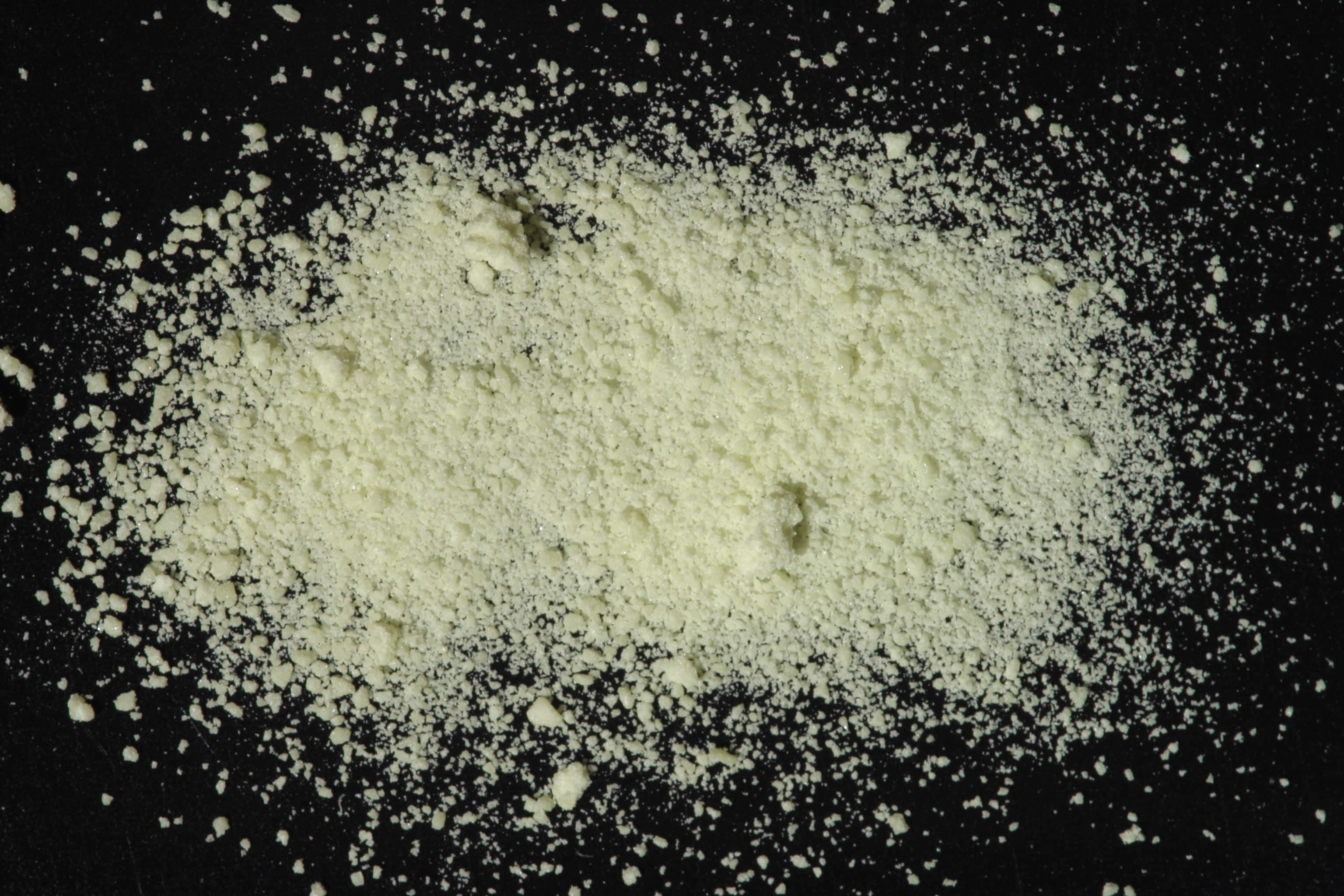

Reagent grade sulfur. IMAGE_OF_SAMPLE:

XRD Analysis

40 kV - 30 mA, 6.5-9.5 keV File: sulf94.mdi (smear on quartz plate) References: JCPDS #8-247 Found: Sulfur Comments: Peaks are moderately narrow, most have sharp tips, but the resolution of the alpha1-alpha2 components is poor. Excellent match to JCPDS #8-247 for all interplanar spacing's and intensities.

X Units

cm⁻¹

Y Units

Absorbance

Data Points

2,126
