Vermiculite Li2UI expand Ore

Spectrum Details

Modality

NIR

Category

man-made

Material Type

Expanded Phyllosilicates

Sample ID

Li2UI

Collection Locality

This sample is from an unopened bag of Zonolite� insulation in Moscow, Idaho, and was provided by Mickey Gunter (University of Idaho) in 2006.

Spectral Purity

1b2_3_4_ # 1= 0.2-3, 2= 1.5-6, 3= 6-25, 4= 20-150 microns

Composition / XRD

None # XRF, EPMA, ICP(Trace), WChem

Sample Description

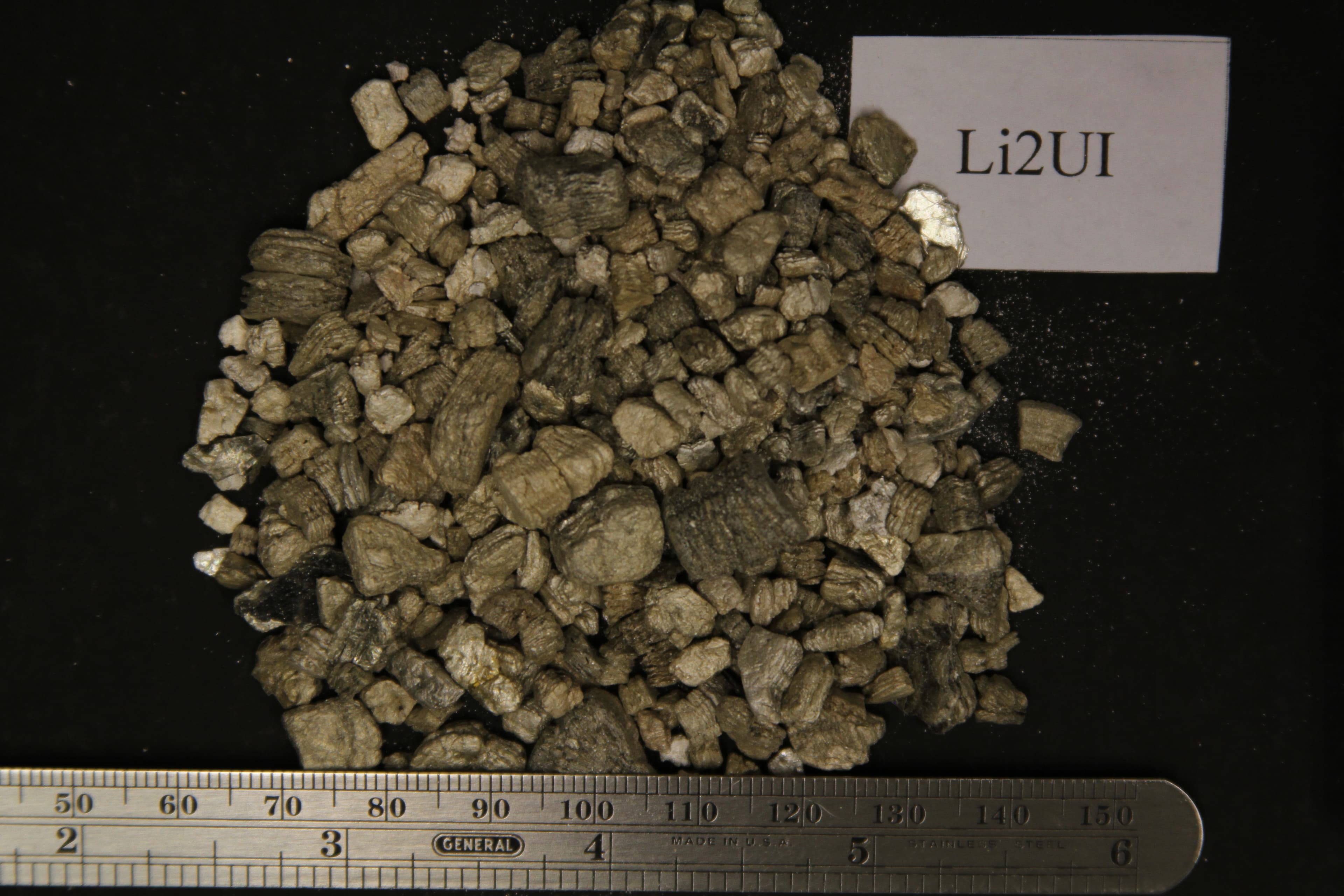

The sample has a mottled golden color with a few dark grains and grains range in size from 2-15 mm (Fig. Li2UI.photo.1). A modified Cincinnati floation method was carried out on this sample. The sink fraction consists of mica flakes and small elongate amphibole bundles, the later of which were mounted on a stub for SEM examination. The abundance of elongate amphibole bundles in the sink fraction indicates up to a few weight percent amphibole particles in this sample. The sample has a spectral signature similar to that of expanded vermiculite ore from Libby, Montana, USA. Original spectrum published in: IMAGE_OF_SAMPLE:

XRD Analysis

No XRD analysis is available for this sample.

X Units

cm⁻¹

Y Units

Absorbance

Data Points

2,126
